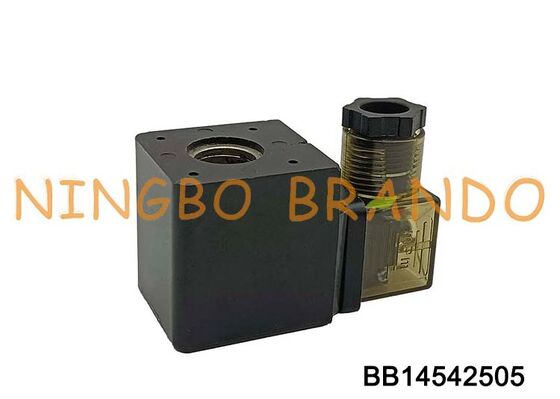

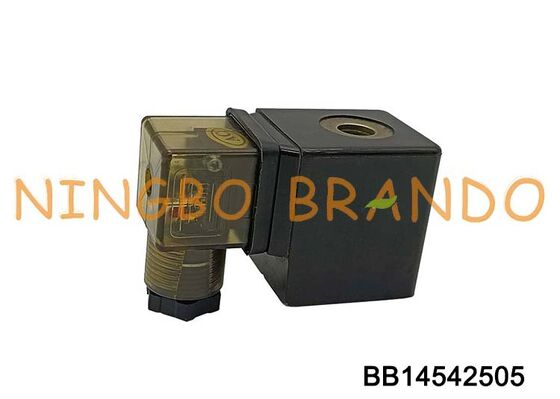

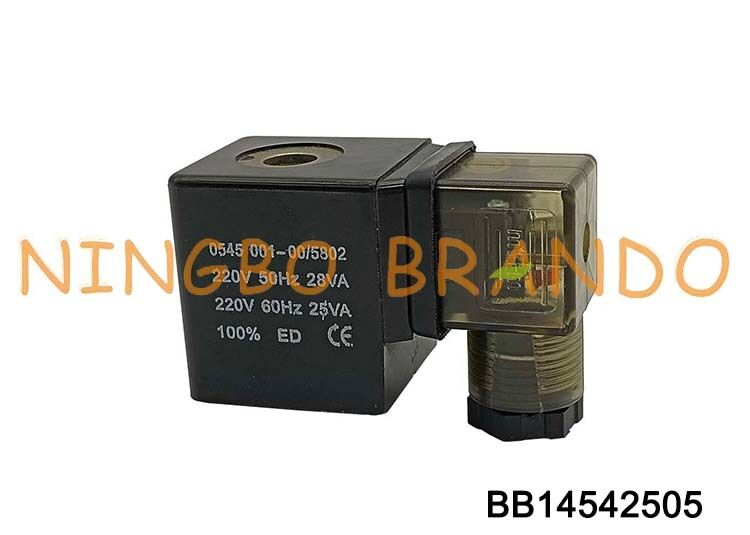

Name: 0545 Solenoid Coil Nass Magnet Type 0545 00.1-00/5802 12V 24V DC 110V 220V AC
Brand: Ningbo Brando Hardware Co., Ltd
SKU: BB14542505
Price: 49.10 USD
Availability: InStock

Ana sayfa Ürünler Solenoid Valf Bobini

0545 Solenoid Coil Nass Magnet Type 0545 00.1-00/5802 12V 24V DC 110V 220V AC

Ürün ayrıntıları:

Menşe yeri:	NINGBO, ÇİN
Marka adı:	BRANDO
Sertifika:	None
Model numarası:	BB14542505

Ödeme & teslimat koşulları:

Min sipariş miktarı:	200
Fiyat:	Anlaşılabilir
Ambalaj bilgileri:	İç Kutu, Karton, Palet
Teslim süresi:	müzakere
Ödeme koşulları:	Banka havalesi, PayPal, Western Union
Yetenek temini:	Ayda 250000 parça

İletişim

Detaylı ürün tanımı

Ürün Adı:	Solenoid valf bobini	Gerilim:	12vdc, 24vdc, 24Vac, 110Vac, 220vac
Güç:	18VA, 28VA, 14W, 20W	Bağlantı:	DIN43650A
Koruma Sınıfı:	IP65	Yalıtım Sınıfı:	F, H
Vurgulamak:	0545 Solenoid Valve Coil 220v , 0545 solenoid coil , Solenoid Valve Coil 0545

0545 Solenoid Coil Nass Magnet Type 0545 00.1-00/5802 12V 24V DC 110V 220V AC

This solenoid coil is same with Nass Magnet solenoid coil 0545, which is popularly used in Shako solenoid valves, like PU220A, PU225A, SPU225A, PU225S series. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Coil Power: 18VA, 28VA, 14W, 20W. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

Dimension & Data of 0545 Solenoid Coil, Armature:

BRANDO Model	BB14542505
Ordering Code	0545
Voltage	220VAC, 110VAC, 24VDC, 12VDC
Power	18VA, 28VA, 14W, 20W
Other voltage and power can be customized
Connector	DIN43650A

armature dimension

BRANDO Model	BAPC214548001
Function	2 Way Normally Closed
Tube Material	Stainless Steel
Seal Material	NBR, EPDM, FKM

Ordering Code of 0545 Solenoid Coil:

Code No	Voltages	Frequency(Hz)	Power (W)	Power (VA)
113-030-0123	24VDC		4,1
113-030-0144	24VAC	50		8,8
113-030-0144	24VAC	60		7,6
113-030-0128	220VAC	50		9,0
113-030-0128	240VAC	60		9,2
113-030-0142	230VAC	50		8,8
113-030-0142	230VAC	60		7,6
113-030-0121	220VAC	50		14,0
113-030-0124	24VDC	-	7,9
113-030-0135	24VAC	50		14,0
113-030-0135	24VAC	60		12,0
113-030-0279	110VAC	50		13,9
113-030-0279	110VAC	60		12,2
113-030-0125	24VDC	-	11,9
113-030-0129	24VAC	50		21,0
113-030-0129	24VAC	60		18,0
113-030-0126	110VAC	50		21,5
113-030-0141	230VAC	50		22,0
113-030-0141	230VAC	60		19,0
113-030-0120	12VDC	-	17,5
113-030-0127	24VAC	50		25,0
113-030-0132	24VDC	-	18,5
113-030-0120	36VAC	50		25,0
113-030-0137	110VAC	50		27,5
113-030-0140	110VAC	60		26,5
113-030-0137	120VAC	60		28,0
113-030-0133	220VAC	50		25,5
113-030-0122	220VAC	50		22,0
113-030-0138	230VAC	50		25,5
113-030-0133	240VAC	60		25,0
113-030-0138	240VAC	60		27,0

Video of 0545 Solenoid Coil:

BRANDO Solenoid Valve Coils Production Video:

More Solenoid Valves for you to choose:


PU220A Series	PU225A Series

SPU225A Series	PU225S Series

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
