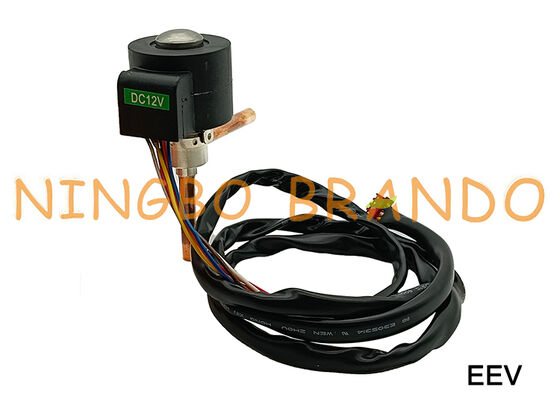

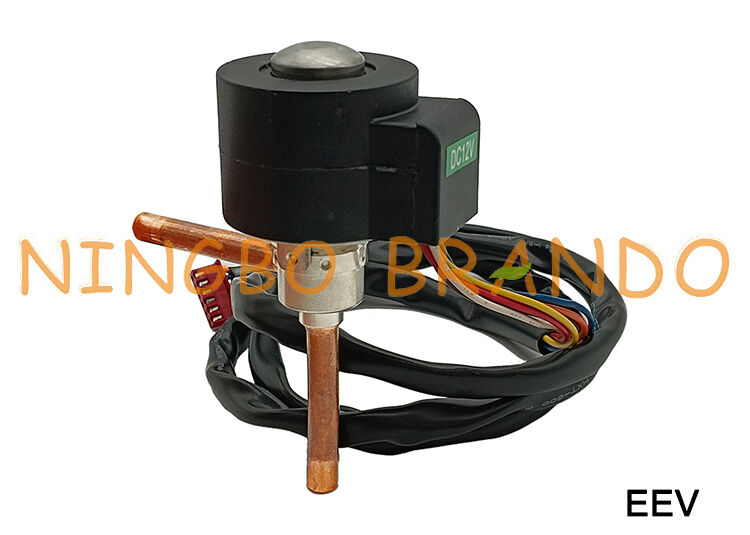

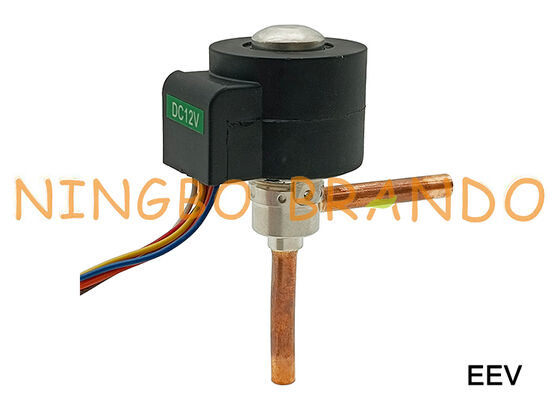

Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC

Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC

  • Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC
  • Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC
  • Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC
Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: BRANDO
Sertifika: None
Model numarası: EEV
Ödeme & teslimat koşulları:
Min sipariş miktarı: 5 adet
Fiyat: Anlaşılabilir
Ambalaj bilgileri: İç Kutu, Karton, Palet
Teslim süresi: müzakere
Ödeme koşulları: Banka havalesi, Western Union, MoneyGram
Yetenek temini: Ayda 100000 PCS
İletişim
Detaylı ürün tanımı
Ürün Adı: Elektronik Genleşme Vanası Bağlantı Noktası Boyutu: 6,35 mm Dış Çap, 7,94 mm Dış Çap
Delik boyutu: 0,6 ila 4,5 mm Soğutma Kapasitesi: 0,7 - 67,7 kW (R22 için)
Uygulanabilir Soğutucu: R22, R410A, R407C, R32, R134A, R404A, R507C, vb. Maksimum Çalışma Basıncı: 43 çubuk
Maks Çalışma Basıncı Farkı: 35 bar Nominal gerilim: 12VDC (±10%), dikdörtgen dalga
Vurgulamak:

EEV Electronic Expansion Valve 12v

,

EXV Electronic Expansion Valve 12vdc

,

Electronic Expansion Valve EEV EXV

Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC


Electronic Expansion Valves (EEV, EXV) are designed for use in air conditioning and refrigeration systems or in heat pumps. The valve controls the automatic adjustment of refrigerant flow rate and makes the system work under optimized conditions for the purpose of fast cooling or heating, precise temperature control and energy saving. The valve can also be used e.g. for suction line pressure controls. These valves provide bidirectional operation to control the refrigerant flow rate in heating or cooling mode.


Specifications:

Applicable Refrigerants
R22, R410A, R407C, R32, R134A, R404A, R507C, etc
Medium Temperature
-30 to +70℃
Ambient Temperature
-30 to +60℃
Relative Humidity
0 to 95% RH
Coil Voltage
12VDC (±10%), rectangular wave
Coil Current
260mA/phase (20°C)
Coil Resistance
46±3.7 Ω/phase (20°C)
Coil Insulation Class
E
Coil Protection Class
IP67
Excitation Mode
1 to 2 phase excitation, monopole actuation
Excitation Rate
30pps to 90pps
Activation of self-holding mechanism
Maintain excitation in stop position min. 0.1 to 1 sec
Min. motion time from completely open to completely closed
5.8s (90pps)


Technical Data:

Model No
Nominal Cooling Capacity (kW)
Kv
(m³/h)
MOP
(bar)
MOPD
(bar)
ROP
(bar)
R22
R407C
R410A
R32
R134A
EEV0.6A
0.7
0.7
0.8
1.2
0.5
0.01
43
35
≥25
EEV0.8A
1.2
1.3
1.4
2.1
0.9
0.017
EEV1.0A
2.7
2.8
3.1
4.6
2.1
0.025
EEV1.3A
5.3
5.7
6.2
9.2
4.2
0.05
EEV1.6A
9.0
9.5
10.5
15.5
7.0
0.08
EEV1.8A
10.6
11.3
12.5
18.4
8.3
0.1
EEV2.0A
13.2
14.0
15.4
22.8
10.3
0.16
EEV2.2A
14.2
15.1
16.6
24.5
11.1
0.2
EEV2.4A
16.7
17.7
19.5
28.8
13.0
0.23
EEV3.0A
27.6
29.4
32.3
47.7
21.6
0.39
≥15
EEV3.2A
30.4
32.4
35.6
52.6
23.8
0.43
EEV4.0B
50.6
53.8
59.2
87.5
39.5
0.5
≥7
EEV4.5B
67.7
72.0
79.2
117.0
52.9
0.7


Main Dimension:

Refrigeration Expansion Valve EEV EXV for Mini Split Systems 12VDC 0

Model No
Orifice Size
(mm)
Dimension
(mm)
F
G
H
φd
φN
EEV0.6A
0.6
80
36
30
6.35
17.35
EEV0.8A
0.8
EEV1.0A
1.0
EEV1.3A
1.3
EEV1.6A
1.6
EEV1.8A
1.8
EEV2.0A
2.0
EEV2.2A
2.2
EEV2.4A
2.4
EEV3.0A
3.0
83
39
39
7.94
EEV3.2A
3.2
EEV4.0B
4.0
101
47
51
EEV4.5B
4.5
