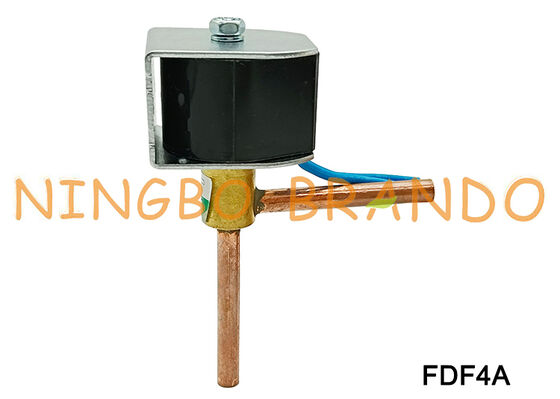

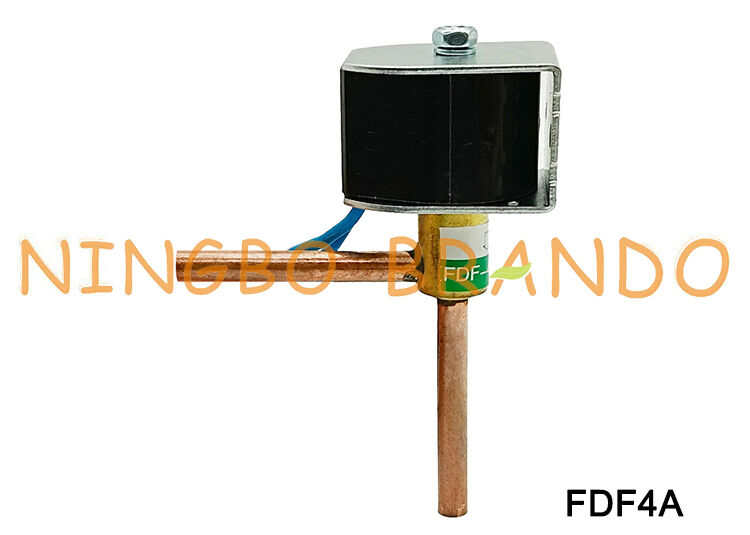

FDF series FDF4A Refrigeration Solenoid Valve For Ice Maker AC220V

FDF series FDF4A Refrigeration Solenoid Valve For Ice Maker AC220V

FDF series solenoid valves are direct operated or pilot operated solenoid valves, mainly used in refrigerant control of various devices such as refrigerating and freezing systems, air conditioners and heat pumps.

* Applicable for all common HCFC, HFC refrigerants such as: R22, R134a, R404A, R407C, R410A, R507, R407A/F, R448A/R449A, R452A, R450A/R513A)
* Applicable medium temperature: -30ºC to +120ºC;
* Applicable ambient temperature: -30ºC to +50ºC;
* Relative humidity: below 95%
* Installation position:
  1. Liquid, suction and discharge line
  2. Coil upwards, coil axis ± 15º tolerance versus vertical axis
  3. Flow direction corresponds to the arrow

Technical Data of FDF NC Series Solenoid Valve:

Main Dimension of FDF NC Series Solenoid Valve:

More Refrigeration Solenoid Valves for you to choose:

Danfoss Type Solenoid Valve	Castel Type Solenoid Valve	Sanhua Type Solenoid Valve

More Expansion Valves for you to choose:

Thermal Expansion Valve	Automatic Expansion Valve	Electronic Expansion Valve
