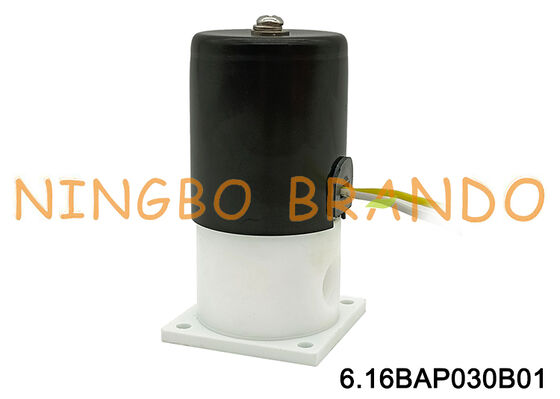

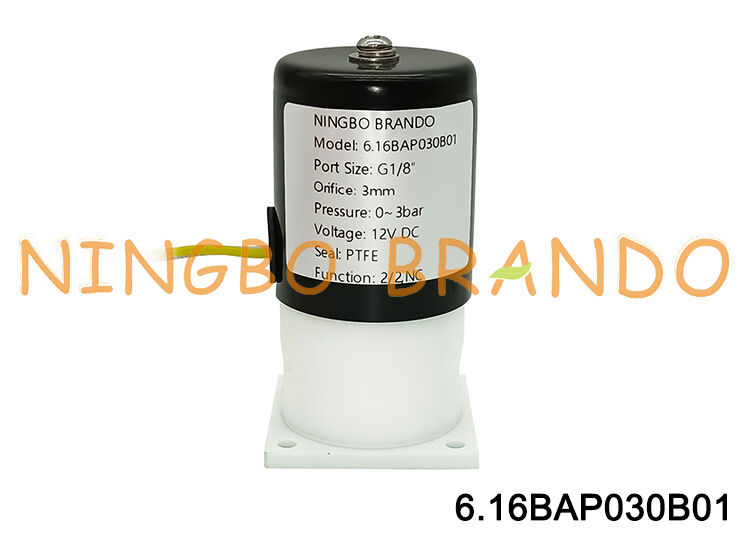

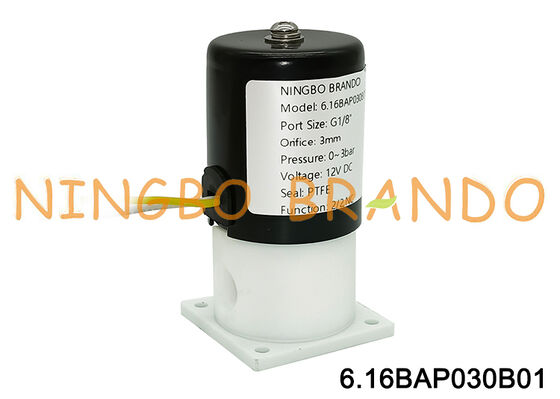

Name: 1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 6.16BAP030B01
Price: 25.00 USD
Availability: InStock

Ana sayfa Ürünler Plastik Solenoid Valf

1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation

Ürün ayrıntıları:

Menşe yeri:	NINGBO, ÇİN
Marka adı:	BRANDO
Sertifika:	None
Model numarası:	6.16BAP030B01

Ödeme & teslimat koşulları:

Min sipariş miktarı:	200
Fiyat:	Anlaşılabilir
Ambalaj bilgileri:	iç kutular, kartonlar, paletler
Teslim süresi:	Müzakere
Ödeme koşulları:	Banka havalesi, Paypal, Western Union
Yetenek temini:	Ayda 100000 adet

İletişim

Detaylı ürün tanımı

İşlev:	2 Yollu, Normalde Kapalı	Bağlantı Noktası Boyutu:	1/8 ''
Delik boyutu:	3 mm	Valf Gövde Malzemesi:	PTFE
Mühür Malzemesi:	PTFE	Çalışma Basıncı Aralığı:	0 ila 0,3 MPa
Gerilimler:	12vdc, 24vdc, 110Vac, 220vac
Vurgulamak:	1/8'' Anti-corrosive PTFE Solenoid Valve , Anti-corrosion Solenoid Valve PTFE , Anti-corrosion Solenoid Valve 1/8''

1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation

Product Features:

Our isolation solenoid valves offer instrument designers a completely inert, non-metallic fluid path. The valves use a flexible diaphragm to isolate the solenoid actuation mechanism from the fluid path. Isolation Valves offer low internal volumes, precise flow control and excellent ease of installation making them particularly suitable for use in highly aggressive and / or high purity fluid applications such as analytical chemistry and clinical diagnostics. The highly inert fluid path is especially useful in liquid chromatography, genomics and protein synthesis applications. The high flow factor makes these valves well suited to environmental and water analysis applications.

Technical Data of Isolation Solenoid Valve:

Model No.	Port size	Orifice (mm)	Cv	Mini Pressure	Max Pressure		Seal Material
					AC(6VA)	DC(10W)
6.16BAP030BM8	M8x1	3.0	0.1	0.0MPa	0.3MPa	0.3MPa	PTFE
6.16BAP030B01	1/8''	3.0	0.1	0.0MPa	0.3MPa	0.3MPa
6.16BAP030B02	1/4''	3.0	0.1	0.0MPa	0.15MPa	0.15MPa
					AC(24VA)	DC(13W)
6.16BAP060B02	1/4''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B03	3/8''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B04	1/2''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B06	3/4''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
