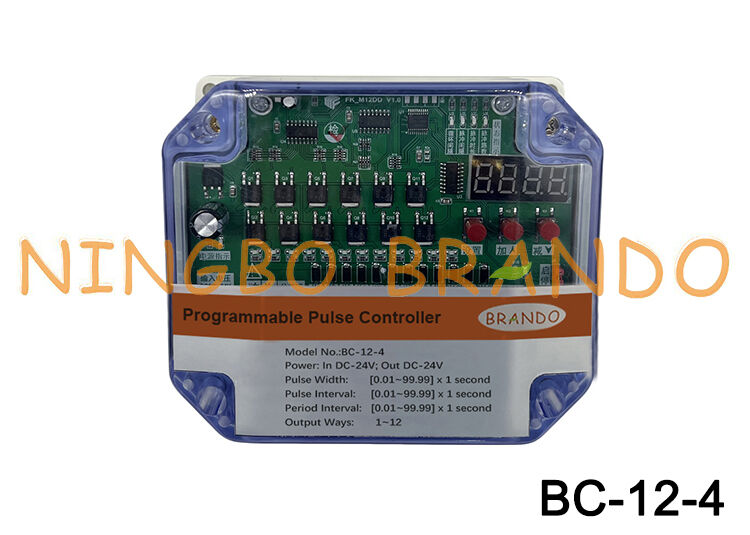

12 Lines Bag Filter Pulse Sequence Controller 24VDC Input 24VDC Output

12 Lines Bag Filter Pulse Sequence Controller 24VDC Input 24VDC Output

Pulse Controller is a pulse jet bag filter control device in cleaning system, its output signal to control Pulse Jet Valve, blow compressed air bag sequential cleaning, so dust remains in the design within a predetermined range, in order to protect the processing power and dust collecting effect.

1. Channel Number: the number of pulse valves in the equipment (off-line mode is the number of pulse valves in a single chamber);
2. Pulse Width: the working time of the pulse valve (blowing time);
3. Pulse Interval: the interval between 2 pulse valves;
4. Cycle Interval: the interval between the end of one cycle and the start of the next cycle;

Technical Data:

Detailed Images:

Controller Setting:

Controller Wiring:

Our Production:

Related Products:

Pulse Valve	Solenoid Coil	Solenoid Armature	Diaphragm
