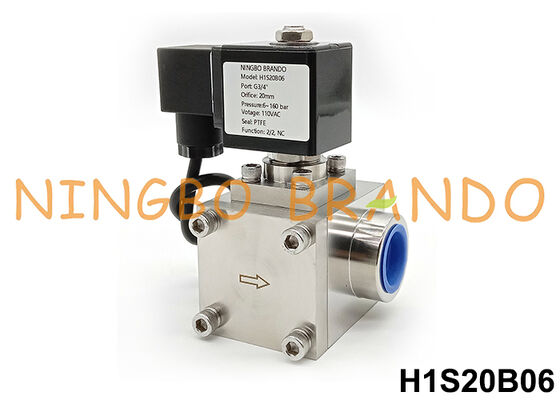

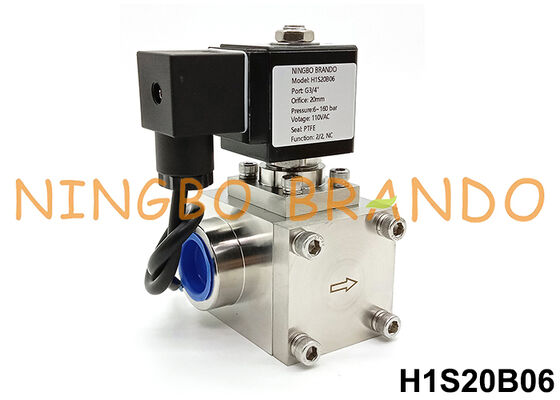

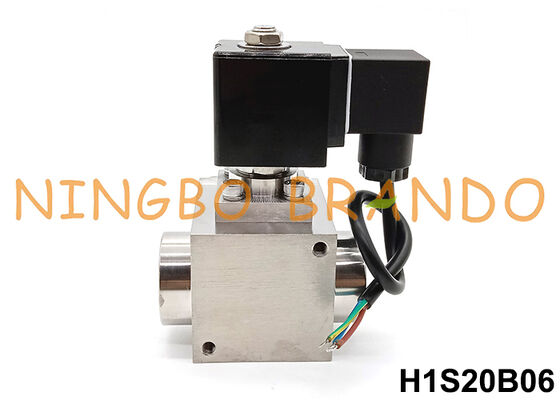

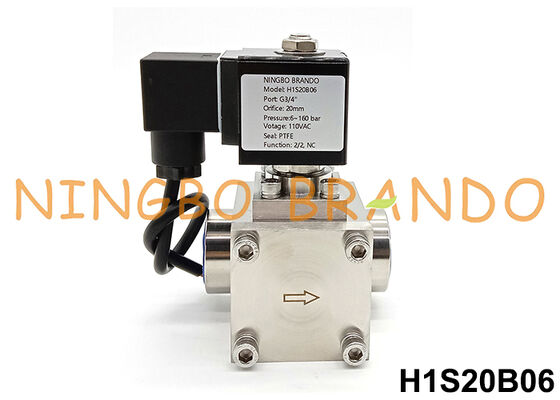

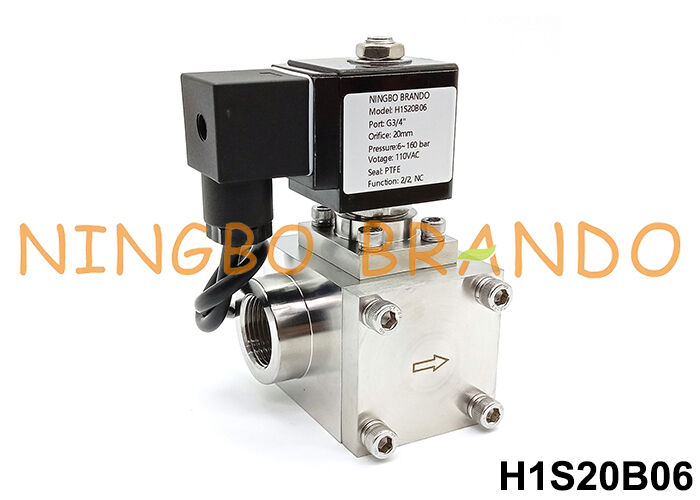

3/4'' High Pressure Solenoid Valve 120 bar 24VDC 160 bar 220VAC

3/4'' High Pressure Solenoid Valve 120 bar 24VDC 160 bar 220VAC

Product Features:

1. Working Medium: Air, Water, Gas, Liquid, etc
2. Max Working Pressure: 160 bar (See the parameter table below for details)
3. Seal Material: PTFE
4. Body Material: Stainless Steel 304
5. Port Size: 3/8'', 1/2'', 3/4'', 1''
6. Orifice Size: 10mm, 15mm, 20mm, 25mm
7. Operation: Piston Pilot Operated
8. Function: 2 Way Normally Closed
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, orifice size, temperature, pressure, voltage, response time and certification required for your application.
