| Menşe yeri: | NINGBO, ÇİN |
| Marka adı: | BRANDO |
| Sertifika: | CE, ISO |
| Model numarası: | 96875 (238864) |
| Min sipariş miktarı: | 20 Takım |
|---|---|
| Fiyat: | Anlaşılabilir |
| Ambalaj bilgileri: | Poşet, Kutu, Karton, Palet |
| Teslim süresi: | 4 ila 7 iş günü |
| Ödeme koşulları: | Banka havalesi, Paypal, Western Union |
| Yetenek temini: | Ayda 100000 set |
| Ürün Adı: | Darbe valfi diyaframı | Takılı Darbe Valfı Model Numarası: | 8353C033, 8353C030, 8353C004 |
|---|---|---|---|
| Takılı Nabız Valfi Bağlantı Noktası Boyutu: | 3/4 '' | Diyafram malzemesi: | NBR |
| 1 takım: | 1 adet Diyafram, 1 adet Yay | ||
| Vurgulamak: | ASCO Diaphragm 238864,ASCO Diaphragm 96875,ASCO Diaphragm Repair Kit |
||

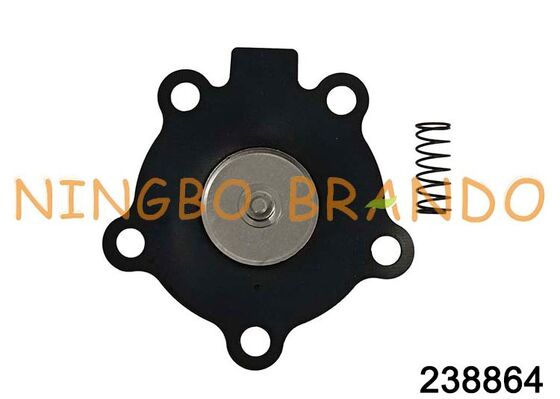

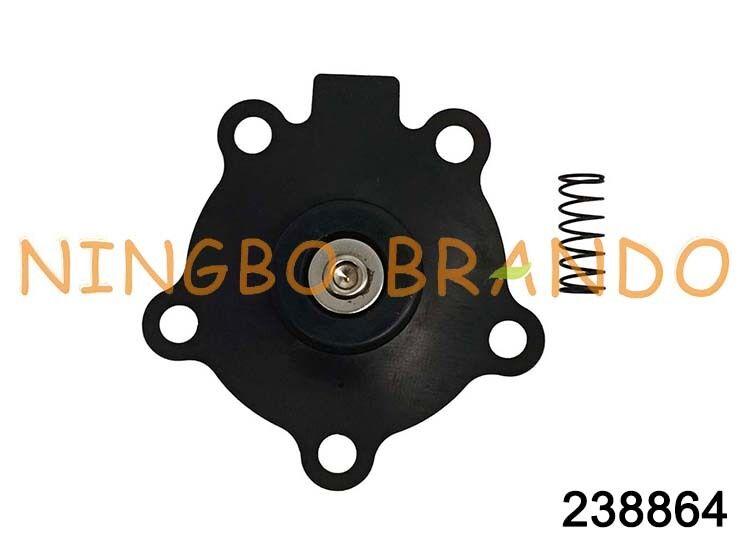

Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphragm is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
96875 (238864) Dimension:
![]()
Reference No:
|
Integral Pilot
Pulse Valve
Model No
|
Remote Pilot
Pulse Valve
Model No
|
Pulse Valve
Port Size
|
Diaphragm Model
|
Diaphragm
Model
(10 pack)
|
Diaphragm Material
|
|
-
|
8353C033
|
3/4''
|
96875
|
238864
|
NBR diaphragm
|
|
-
|
8353C030
|
3/4''
|
96875
|
238864
|
NBR diaphragm
|
|
-
|
8353C004
|
3/4''
|
96875
|
238864
|
NBR diaphragm
|
|
-
|
8353C035
|
1''
|
200262
|
238866
|
HYTREL diaphragm
|
|
8353G041
|
-
|
1''
|
316563
|
238866
|
HYTREL diaphragm
|
|
8353G006
|
-
|
1''
|
300144
|
-
|
CR diaphragm, PA disc
|
|
8353G005
|
-
|
1-1/4''
|
300144
|
-
|
CR diaphragm, PA disc
|
|
8353G001
|
-
|
1-1/2''
|
300144
|
-
|
CR diaphragm, PA disc
|
|
-
|
8353H038
|
1-1/2''
|
276886
|
238870
|
HYTREL diaphragm
|
|
8353J039
|
-
|
1-1/2''
|
322108
|
238870
|
HYTREL diaphragm
|
|
8353G061
|
-
|
1-1/2''
|
316297
|
-
|
NBR diaphragm, PA disc
|
|
-
|
8353A062
|
1-1/2''
|
276884
|
-
|
NBR diaphragm, PA disc
|
|
8353G002
|
-
|
2''
|
300145
|
-
|
CR diaphragm, PA disc
|
|
-
|
8353 048
|
2''
|
256802
|
256797
|
CR diaphragm
|
|
8353G050
|
-
|
2''
|
316029
|
256797
|
CR diaphragm
|
|
8353G007
|
-
|
2 1/2''
|
176878
|
-
|
CR diaphragm, PA disc
|
|
8353G008
|
-
|
3''
|
176878
|
-
|
CR diaphragm, PA disc
|
