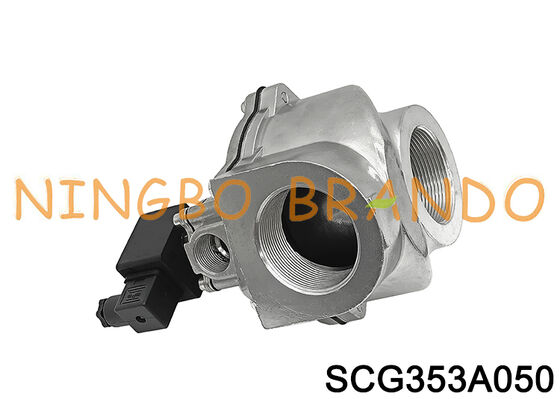

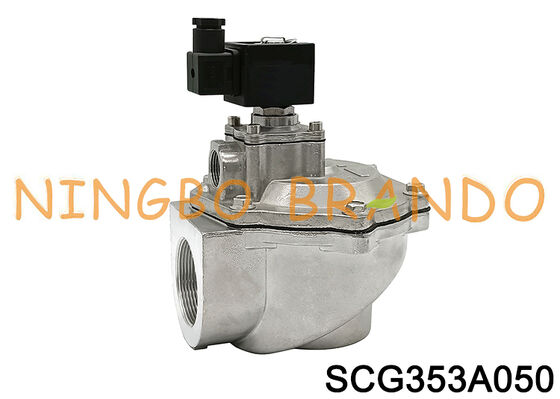

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal

  • ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
  • ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
  • ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
  • ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: Brando
Sertifika: CE
Model numarası: SCG353A050
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 takım
Fiyat: Anlaşılabilir
Ambalaj bilgileri: İç kutu, karton, palet
Teslim süresi: Müzakere
Ödeme koşulları: L/C, T/T, Western Union, PayPal
Yetenek temini: Ayda 100000 PC
İletişim
Detaylı ürün tanımı
Ürün adı: Darbe Püskürtme Valfı Port Boyutu: 2 inç
Uzak veya Entegre: Entegre Pilot Gövde Malzemesi: Alüminyum
Diyafram malzemesi: NBR Basınç aralığı: 0,3 ila 0,8 MPa
Valf tipi: Dik açı Voltaj: 220VAC, 24VDC
Vurgulamak:

SCG353A050 Pulse Valve

,

2'' Pulse Jet Valve

,

ASCO SCG353A050

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal


Pulse jet valves are for controlling air pulses in dust collectors. Aluminium diecast 2-way valves are high flow, diaphragm operated angle body specially designed for reverse jet type dust collectors. The designs have a spring construction with only one moving part, high flow long life and fast opening combine to offer a superior design for the dust collector systems. The high-speed operation not only saves the compressed air but it provides the kind of shock wave necessary to free the dust from filter bags. Valves are offered in both integrated and remote coil configurations.


Features:
1. High quality NBR diaphragm for longer life
2. High flow factor for effective cleaning
3. Valve can be mounted in any position
4. Quick on & off response time


Technical Data of 353 Series Pulse Jet Valves:

Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Nominal Size
φ20mm
φ25mm
φ40mm
φ50mm
φ62mm
Working Pressure
0.3 to 0.8MPa
Environment Temperature
-5 to +55℃
Relative Humidity
≤85%
Operating Medium
Dry clean compressed air
Voltages
220VAC, 24VDC


Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.


Dimension of SCG353A050 Pulse Jet Valve:

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 0


Video of SCG353A050 Pulse Jet Valve:


More ASCO Type Pulse Valve For You to Choose:

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 1ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 2ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 3

           Right Angle Type                        Remote Pilot Type                       Immersion Type

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 4ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 5ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 6ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 7

            Diaphragm                     Solenoid Coil                Armature Assembly            Pulse Controller


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
