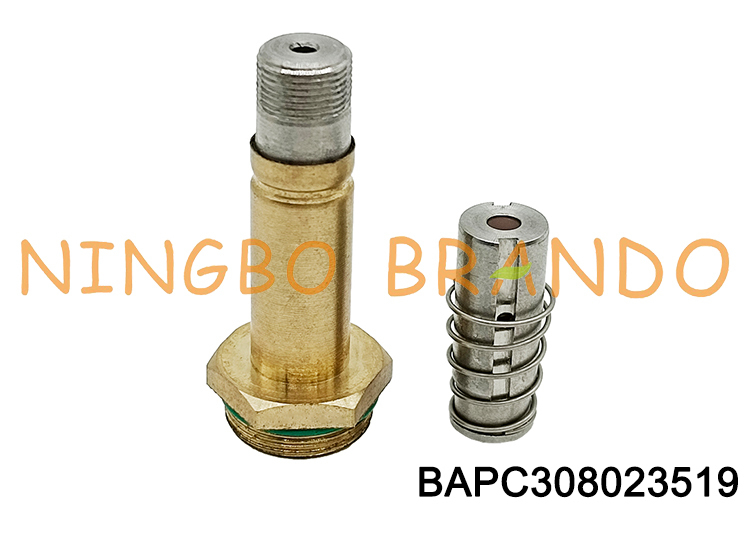

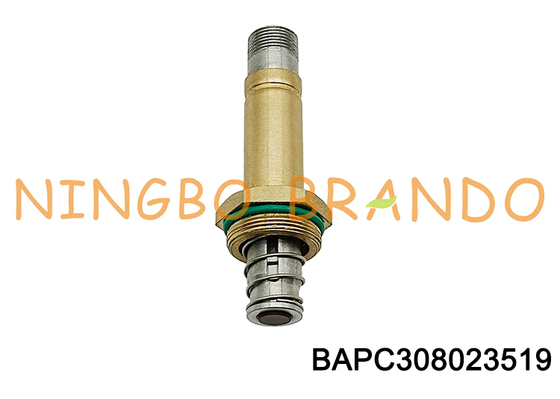

3/2 Way Normally Closed Solenoid Valve Brass Armature Plunger Tube Assembly

3/2 Way Normally Closed Solenoid Valve Brass Armature Plunger Tube Assembly

  • 3/2 Way Normally Closed Solenoid Valve Brass Armature Plunger Tube Assembly
  • 3/2 Way Normally Closed Solenoid Valve Brass Armature Plunger Tube Assembly
3/2 Way Normally Closed Solenoid Valve Brass Armature Plunger Tube Assembly
Ürün ayrıntıları:
Menşe yeri: Ningbo, Çin
Marka adı: BRANDO
Sertifika: None
Model numarası: BAPC308023519
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1000Set
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Kutu, karton, palet
Teslim süresi: Müzakere
Ödeme koşulları: T/T, Paypal, Western Union
Yetenek temini: Ayda 300000Set
İletişim
Detaylı ürün tanımı
Ürün adı: Solenoid Valf Armatürü İşlev: 3/2 yol normalde kapalı
Piston Tüpü Dış Çapı: 8mm Piston Tüpü Malzemesi: Pirinç
Keçe malzemesi: Fkm
Vurgulamak:

Solenoid Valve Armature Plunger

,

Solenoid Valve Armature Tube

,

Solenoid Valve Plunger Tube

3/2 Way Normally Closed Solenoid Valve Brass Armature Plunger Tube Assembly



The solenoid armature plunger is the pressure-tight internal part of a solenoid valve. BRANDO produces its components from round material in brass, as well as from stainless steel using diverse alloys. The selection of the sealing material (elastomer) is always based on the operating and ambient conditions of the application.



The standard seals used are made of FKM. NBR, HNBR, MVQ, EPDM and FFKM are available on request. Hard-sealing materials such as PTFE are available for process technology applications. This expands the range of applications to include a variety of media for lower and higher temperature ranges. Sealing materials suitable for oxygen or other aggressive gaseous media are available on request.



Dimension & Data of Solenoid Valve Armature, Coil:

3/2 Way Normally Closed Solenoid Valve Brass Armature Plunger Tube Assembly 0

BRANDO Model
BAPC308023519
Funtion
3 Way Normally Closed
Connection Type
Thread
Plunger Tube Material
Brass
Seal Material
FKM



3/2 Way Normally Closed Solenoid Valve Brass Armature Plunger Tube Assembly 1

BRANDO Model
BB08023502
Voltage
12VDC, 24VDC, 24VAC,
110VAC, 220VAC
Power
AC: 5VA
DC: 2.8W
Other voltage and power can be customized
Connector
Flying Leads









BRANDO Solenoid Valve Armature Production:



More Solenoid Valves for you to choose:

3/2 Way Normally Closed Solenoid Valve Brass Armature Plunger Tube Assembly 2 3/2 Way Normally Closed Solenoid Valve Brass Armature Plunger Tube Assembly 3 3/2 Way Normally Closed Solenoid Valve Brass Armature Plunger Tube Assembly 4
Brass Solenoid Valve Stainless Steel Solenoid Valve Plastic Solenoid Valve


Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
