Name: 2S050-15 1/2'' Airtac Type Solenoid Valve Stainless Steel 304 220V 110V 24V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 2S050-15
Price: 26.00 USD
Availability: InStock

Ana sayfa Ürünler Paslanmaz Çelik Solenoid Valf

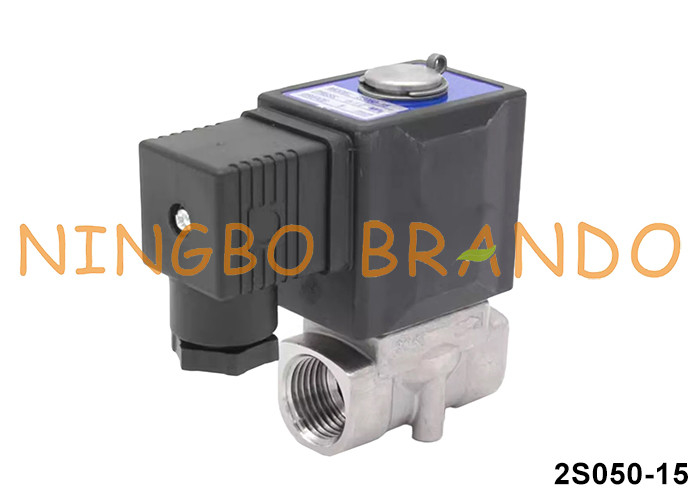

2S050-15 1/2'' Airtac Type Solenoid Valve Stainless Steel 304 220V 110V 24V

Ürün ayrıntıları:

Menşe yeri:	Ningbo, Çin
Marka adı:	BRANDO
Sertifika:	None
Model numarası:	2S050-15

Ödeme & teslimat koşulları:

Min sipariş miktarı:	100 adet.
Fiyat:	Anlaşılabilir
Ambalaj bilgileri:	Kutu, Karton, Palet
Teslim süresi:	Müzakere
Ödeme koşulları:	T/T, PayPal, Western Union
Yetenek temini:	Ayda 100000 ADET

İletişim

Detaylı ürün tanımı

Ürün Adı:	Solenoid Valf	Port Boyutu:	1/2''
delik boyutu:	5mm	Gövde Malzemesi:	Paslanmaz çelik 304
Conta malzemesi:	NBR (Standard), EPDM, FKM (Önerilmez)	Çalışma Ortamı:	Su, Hava, Gaz, Sıvı vb.
Görev:	2 Yollu Normalde Kapalı	Eylem:	Doğrudan Oyunculuk
Çalışma Baskısı:	0 ila 10 bar	Voltaj:	220VAC, 110VAC, 24VAC, 24VDC, 12VDC
Vurgulamak:	Airtac Solenoid Valve 2S050-15 , Stainless Steel Water Solenoid Valve , Solenoid Valve Stainless Steel 1/2''

2S050-15 Airtac Type Stainless Steel Solenoid Valve

Product Features:

1. Working Medium: Water, Air, Gas, Liquid, etc

2. Max Working Pressure: 10 bar

3. Medium Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)

4. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''

5. Orifice Size: 3mm, 5mm, 15mm, 20mm, 25mm

6. Body Material: Stainless Steel 304

7. Seal Material: NBR (Standard), EPDM, FKM

8. Operation: Direct Acting (DN3 to DN5), Pilot Operated (DN15 to DN25)

9. Function: 2 Way Normally Closed

10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Model No	2S030-06	2S030-08	2S050-10	2S050-15	2S150-10	2S150-15	2S200-20	2S250-25
Port Size	1/8''	1/4''	3/8''	1/2''	3/8''	1/2''	3/4''	1''
Orifice Size	3mm	3mm	5mm	5mm	15mm	15mm	20mm	25mm
CV	0.33	0.33	0.83	0.83	5.5	5.5	9.5	12.5
Body Material	Stainless Steel 304
Seal Material	NBR (Standard), EPDM, FKM
Working Medium	Water, Air, Gas, Liquid, etc
Working Temperature	NBR: -5 to +80℃ EPDM: -5 to +120℃ FKM: -10 to +150℃
Working Pressure	0 to 10 bar				0.5 to 10 bar
Operation	Direct Acting				Pilot Operated
Function	2 Way Normally Closed
Supply Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Main Dimension:

Model No	Port	A	B	C	D	L
2S030-06	1/8''	60	25	70	41	16
2S030-08	1/4''	60	25	70	41	16
2S050-10	3/8''	72	31	85	52	23
2S050-15	1/2''	72	31	85	52	23
2S150-10	3/8''	92	46	105	70	/
2S150-15	1/2''	92	46	105	70	/
2S200-20	3/4''	96	53	113	82	/
2S250-25	1''	102	59	122	92	/
