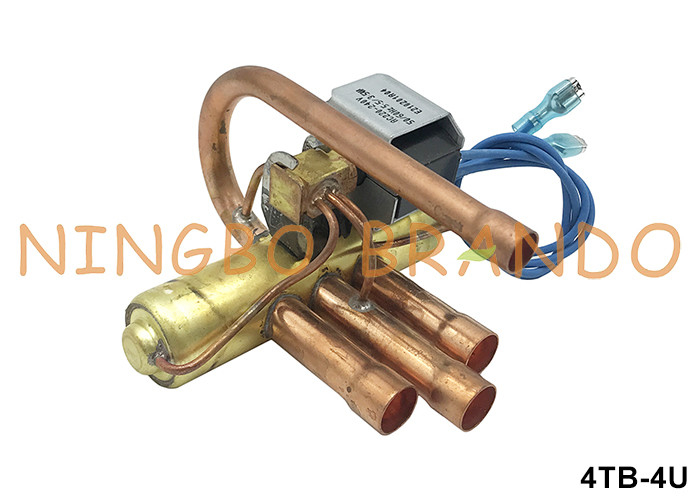

Name: Refrigeration 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V
Brand: BRANDO
SKU: 4TB-4U
Rating: 4.7 (104 reviews)

Ana sayfa Ürünler Soğutma Solenoid Valfı

Refrigeration 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V

Ürün ayrıntıları:

Menşe yeri:	Ningbo, Çin
Marka adı:	BRANDO
Sertifika:	CE, ISO
Model numarası:	4TB-4U

Ödeme & teslimat koşulları:

Min sipariş miktarı:	500 adet.
Fiyat:	negotiable
Ambalaj bilgileri:	Kutu, Karton, Palet
Teslim süresi:	20 ila 30 İş Günü
Ödeme koşulları:	T/T, PayPal, Western Union
Yetenek temini:	Ayda 50000 adet

İletişim

Detaylı ürün tanımı

Product Name:	4 Way Reversing Valve	D Port Size:	8.1mm (5/16'')
E.S.C Port Size:	9.6mm (3/8'')	Power:	0.75 to 1.5HP
Applicable Refrigerant:	R22, R407C, R410A, etc	Application:	Heat Pump, Air Conditioning, etc
Voltage:	24VDC, 24VAC, 110VAC, 220VAC
Vurgulamak:	Four Way Reversing Valve , Refrigeration 4 Way Reversing Valve , 4 Way Reversing Valve For Heat Pump

Refrigeration 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V

The 4 way reversing valves are used in reversible applications such as heat pumps or reversible air conditioning units and chillers. The 4 way reversing valve allows an inversion of the refrigeration cycle, changing from cooling mode in Summer to heating mode in Winter.

Technical Data:

Model No	Orifice Size (mm)	Port Size (mm)		Operating Pressure Difference (MPa)		Internal Leakage (ml/min) P=1MPa at 70℃	Power (HP)
Model No	Orifice Size (mm)	D	E.S.C	Min	Max	Internal Leakage (ml/min) P=1MPa at 70℃	Power (HP)
4TB-4U	8	8.1	9.6	0.25	2.5	＜1000	0.75 to 1.5
4TB-9U	11	9.6	12.8	0.34	2.25	＜1500	2 to 3
4TB-11	11.5	12.8	16	0.34	2.25	＜2000	2.5 to 4
4TB-11U	11.5	9.6	16	0.34	2.25	＜2000	2.5 to 4
4TB-20	13	12.8	19.2	0.34	2.25	＜4000	4 to 8
4TB-20U	13	12.8	19.2	0.34	2.25	＜4000	4 to 8
4TB-34	20	19.05	22.2	0.34	2.25	＜6000	7.5 to 12
4TB-45	23	22.2	28.5	0.34	2.76	＜6000	5 to 15
4TB-45	25.6	28.5	34.9	0.34	2.76	＜6000	5 to 20

Working Principle:

Refrigeration 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 1

Structure:

Refrigeration 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V 2

Our Production:

Related Products


Solenoid Valve	Expansion Valve	Hot Gas Bypass Valve	Pressure Regulator

Ball Valve	Check Valve	Sight Glass	Access Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
