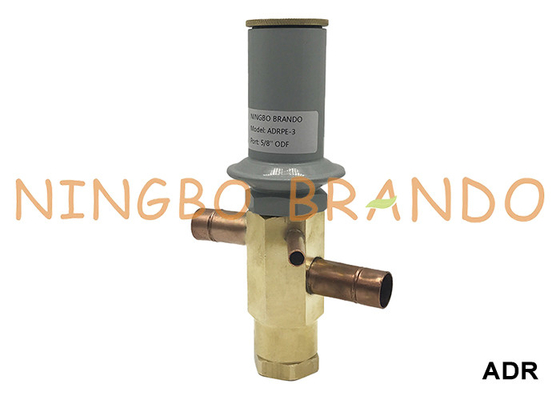

Sporlan Type ADRPE-3 Discharge Bypass Valve ADRPE-3-0/30 ADRPE-3-0/80

Ürün ayrıntıları:

Menşe yeri:	Ningbo, Çin
Marka adı:	BRANDO
Sertifika:	CE, ISO
Model numarası:	ADRPE-3

Ödeme & teslimat koşulları:

Min sipariş miktarı:	50 adet.
Fiyat:	negotiable
Ambalaj bilgileri:	Kutu, Karton, Palet
Teslim süresi:	7 iş günü
Ödeme koşulları:	T/T, Western Union, Paypal
Yetenek temini:	Ayda 200000 adet

İletişim

Detaylı ürün tanımı

Ürün Adı:	Sıcak Gaz Baypas Vanası	Eşitleme:	Harici Eşitlenmiş
Harici Ekolayzer:	1/4'' ODF'li	Giriş ve çıkış:	5/8'' ODF'li
Soğutucu:	R134a, R401A, R22, R402A, R404A, R407C, R507, vb.	Düzenleme aralığı (psig):	0/30, 0/80
Vurgulamak:	Sporlan Type Discharge Bypass Valve , ADRPE-3 Discharge Bypass Valve , Hot Gas Bypass Valve

Sporlan Type ADRPE-3 Discharge Bypass Valve ADRPE-3-0/30 ADRPE-3-0/80

The primary function of ADR discharge hot gas bypass valves, referred to as DBV valves, is to limit the minimum evaporating pressure during periods of low load either to prevent coil icing or avoid operating the compressor at a lower suction pressure than it was designed to operate. Each valve is factory tested to ensure positive leak-free performance.

Technical Data:

Model No	Valve Type	Equalizer Size	Inlet & Outlet Size	Adjustment Range (psig)	Standard Setting (psig)
ADRIE-1-1/4	Externally Equalized	1/4'' ODF	3/8'' ODF	0 to 55 0 to 75 0 to 100	28 38 50
ADRSE-2			3/8'' ODF	0 to 30 0 to 80	20 60
			1/2'' ODF
			5/8'' ODF
			3/8'' SAE
			1/2'' SAE
			5/8'' SAE
ADRPE-3			1/2'' ODF
			5/8'' ODF
			1/2'' SAE
			5/8'' SAE
ADRHE-6			5/8'' ODF
			7/8'' ODF
			1-1/8'' ODF

Cooling Capacity (KW):

R22

Min Evaporator Temperature	Adjustment Range
	ADRIE-1-1/4			ADRSE-2		ADRPE-3		ADRHE-6
	0/55psig	0/75psig	0/100psig	0/30psig	0/80psig	0/30psig	0/80psig	0/30psig	0/80psig
	0/3.79bar	0/5.17bar	0/6.9bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar
5℃	-	2.04	1.86	-	12.3	-	21.1	-	32.2
-5℃	1.55	2.25	1.9	-	12.5	-	22	-	34.8
-15℃	2.22	2.11	1.72	13.7	12.9	26	23.2	48.9	38.3
-25℃	2.08	1.76	1.55	13.2	12.8	26.2	23.4	49.6	38.7

R134a

Min Evaporator Temperature	Adjustment Range
	ADRIE-1-1/4			ADRSE-2		ADRPE-3		ADRHE-6
	0/55psig	0/75psig	0/100psig	0/30psig	0/80psig	0/30psig	0/80psig	0/30psig	0/80psig
	0/3.79bar	0/5.17bar	0/6.9bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar
5℃	1.41	1.51	1.19	-	9.4	-	17.4	-	32.9
-5℃	1.44	1.37	1.12	9.15	8.59	17.4	15.5	32.9	25.5
-15℃	1.34	1.09	0.98	8.66	-	17.2	-	33.1	-

R404A

Min Evaporator Temperature	Adjustment Range
	ADRIE-1-1/4			ADRSE-2		ADRPE-3		ADRHE-6
	0/55psig	0/75psig	0/100psig	0/30psig	0/80psig	0/30psig	0/80psig	0/30psig	0/80psig
	0/3.79bar	0/5.17bar	0/6.9bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar
5℃	-	-	1.94	-	-	-	-	-	-
-5℃	-	2.36	2.11	-	13.7	-	23.6	-	36.6
-15℃	2.35	2.5	1.97	-	14.1	-	25.2	-	41.2
-25℃	2.39	2.15	1.79	14.7	14.1	28.4	25.6	53.8	42.6

R407C

Min Evaporator Temperature	Adjustment Range
	ADRIE-1-1/4			ADRSE-2		ADRPE-3		ADRHE-6
	0/55psig	0/75psig	0/100psig	0/30psig	0/80psig	0/30psig	0/80psig	0/30psig	0/80psig
	0/3.79bar	0/5.17bar	0/6.9bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar
5℃	-	2.74	2.29	-	14.9	-	26.4	-	42.6
-5℃	2.15	2.74	2.22	-	14.9	-	26.4	-	42.6
-15℃	2.6	2.39	1.97	15.9	15.2	30.4	27.5	57.3	45.7
-25℃	2.39	1.97	1.76	15.2	14.9	30.4	27.1	58	45.4

Main Dimension:

Model No	Inlet & Outlet	A	B	C	D	E	F
ADRIE-1-1/4	3/8'' ODF	124	46	35	43	34	50
ADRSE-2	3/8'' ODF	164	64	50	37	37	70
	1/2'' ODF				35	35
	5/8'' ODF				38	38
	3/8'' SAE				43	45
	1/2'' SAE				48	50
	5/8'' SAE				53	54
ADRPE-3	1/2'' ODF	176	72	53	43	41	70
	5/8'' ODF				46	45
	1/2'' SAE				53	53
	5/8'' SAE				56	56
ADRHE-6	5/8'' ODF	180	73	48	118	118	70
	7/8'' ODF
	1-1/8'' ODF
